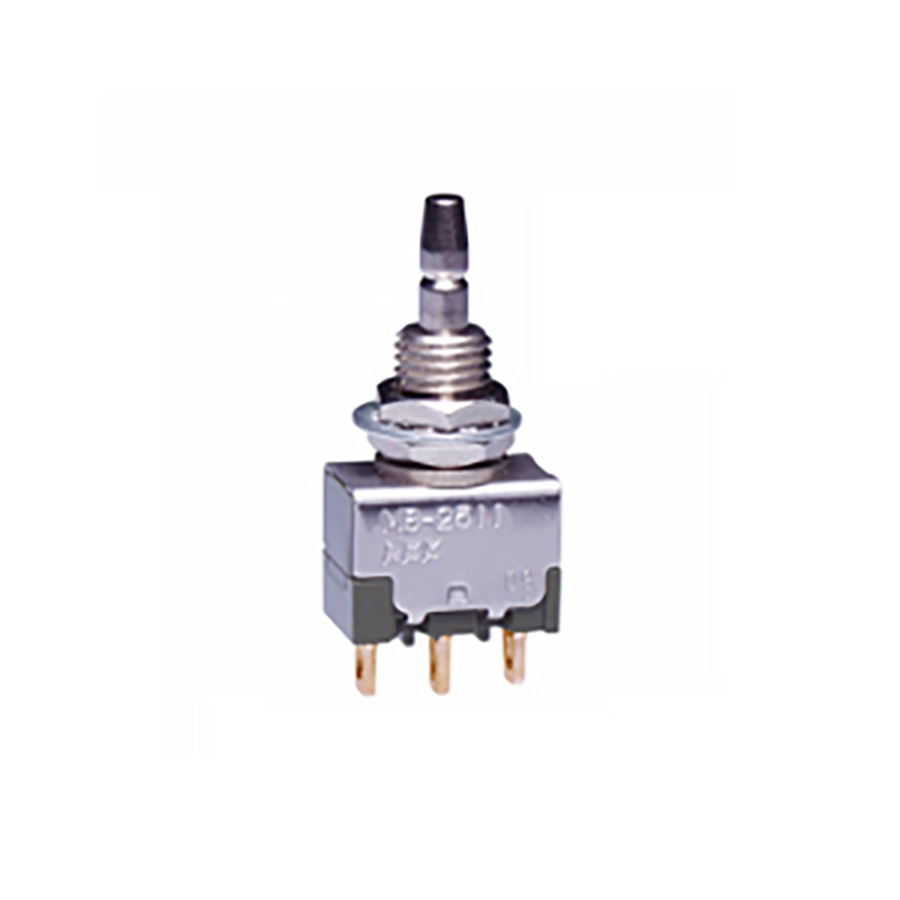

MB2511S4G01
Manufacturer:
NKK Switches
Mfr.Part #:
MB2511S4G01
Datasheet:
Description:
Pushbutton Switches Panel SPDT On-Mom Plunger for Cap Illuminated Standard Current Rating:400 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 28 V |
| Length | 13 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 28 V |
| Power Rating | 400 mW |
| Circuit Type | SPDT |
| Packaging | Bulk |
| Depth | 7.9 mm |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Type | Standard |
| Current Rating | 400 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 28 V |
| Throw Configuration | SPDT |
| Housing Material | Resin |
| Max Voltage Rating (AC) | 28 V |
| Switch Function | On-Mom |
| Illumination Type | Illuminated |
| Electrical Life | 100 kcycles |
| Actuator Material | Brass |
| Mechanical Life | 200 kcycles |
| Actuator Type | Plunger for Cap |
| Termination Style | Solder Lug |
| Schedule B | 8536509030 |
